Maintenance - OLD Rear Uprights OLD

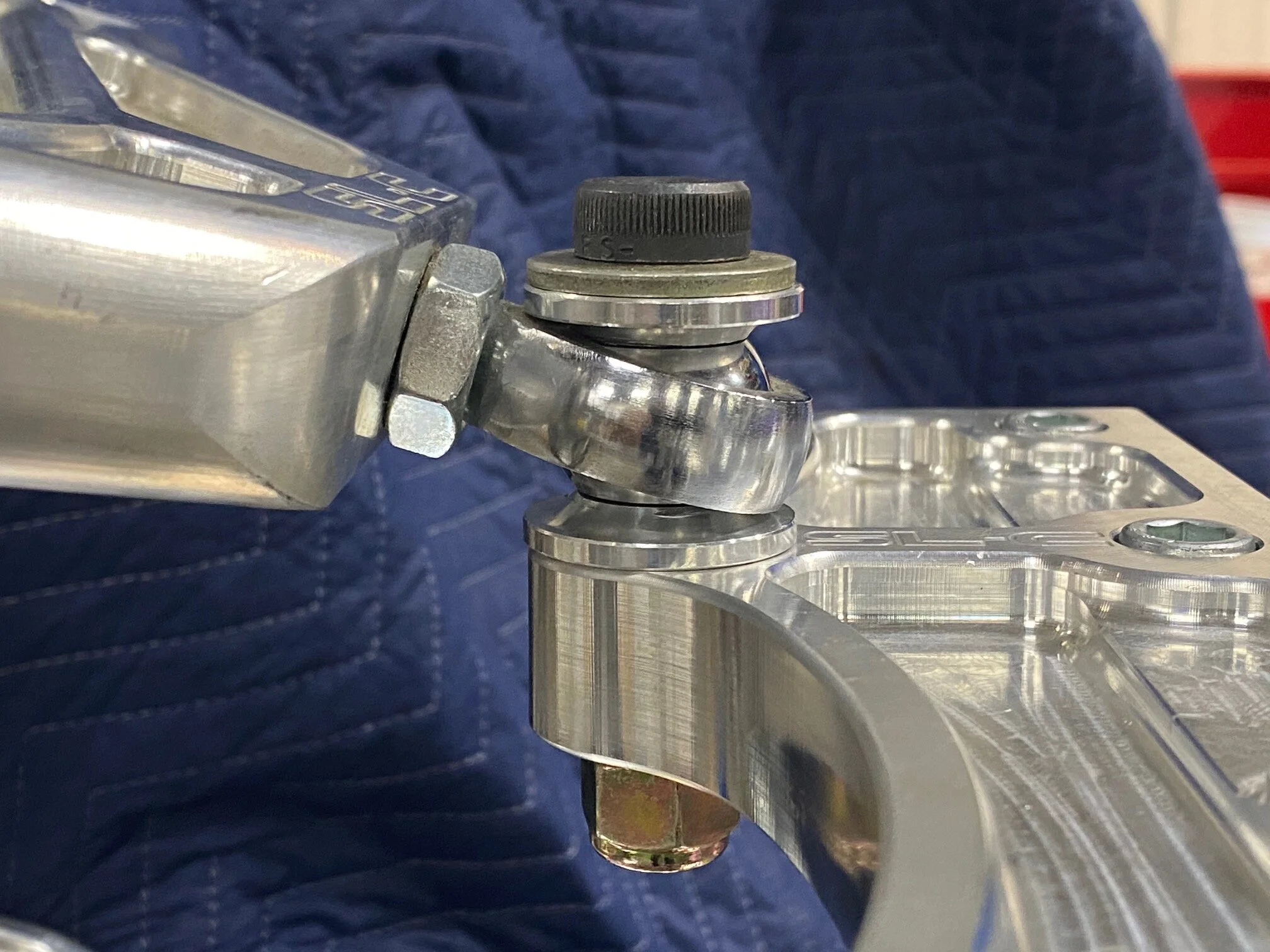

The above picture of the exploded parts depicts the right upright viewed from the right side of the car with the front of the car pointing to the right. The uprights (B) are symmetrical until hub spacer plate (I) and the stainless steel dowels (F9) are installed as shown. Note that parts E and F were machined to clear the upgraded Brembo GT calipers, the F2 are special Supertainium washers designed to fit in machined recesses for socket head cap screws and are not included in the kit.
| ID | Left Side | Right Side | Description | Material |
|---|---|---|---|---|
| A | SLC-RR-TP-01L | SLC-RR-TP-01R | Upright Top | Aluminum |
| B | SLC-RR-UR-02RL | Same | Upright | Aluminum |
| C | n/a | n/a | Hub Spacer | Aluminum |
| D | n/a | n/a | Upper Bump Steer Bushing | Aluminum |
| E | n/a | n/a | Lower Bump Steet Bushing | Aluminum |
| F | SLC-RR-TOE-01RL | Same | Toe Link Arm | Aluminum |
| G | n/a | n/a | Toe Link | Steel |
| H | SLCRRLBJP | Same | Lower Ball Joint Plate | Steel |
| ID | Qty. | Description Compound | Compound | Torque (Pound-Foot) | Tool |
|---|---|---|---|---|---|
| F1 | 7 | 7/16"-14 x 1-1/4" Socket Head Cap Screw | Anti Seize | ??? | 3/8" Hex Bit Socket |
| F2 | 3 | 7/16" Supertanium Socket Cap Washer | - | - | - |
| F3 | 2 | 5/16"-18 x 1-1/4" Socket Head Cap Screw | Anti Seize | ??? | ??? |
| F4 | 2 | 5/16" Stainless Steel Washer | - | - | - |
| F5 | 1 | 1/2"-13 x 8" Grade 8 Screw | - | - | ??? |
| F6 | 2 | 1/2" Grade 8 Washer | - | - | - |
| F7 | 1 | 1/2"-13 Grade 8 Nut | - | ??? | 3/4" Socket |
| F8 | 3 | 1/4" Diameter, 7/8" Long Dowel Pin (Stainless Steel) | - | - | - |
| F9 | 1 | Shoulder Screw (5/8" Shoulder Diameter, 2-1/4" Shoulder Length, 1/2"-13 Thread) | - | - | 5/16" Hex Bit Socket |
| F10 | 1 | 5/8" Washer (Grade 8) | - | - | - |
| F11 | 2 | 5/8" ID x 1/4" Tall Cone Washer (Aluminum) | - | - | - |
| F12 | 1 | 1/2" AN Washer (Thinner than Grade 8) | - | - | - |
| F13 | 1 | 1/2"-13 Nyloc (Grade 8) | - | ??? | 3/4" Socket |
